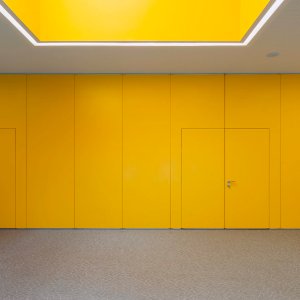

PMI operable partition by Anaunia dividing a convention center hall

Thirty-nine feet of wall that moves: PMI operable partitions by Anaunia

Anaunia
PMI
PMI Guide price — every project is bespoke
From $ 18,000

Let's discuss your project

Trade terms for professionals and design studios

Most operable partitions stop where a ballroom ceiling starts. PMI is rated by Anaunia for wall heights up to 12 m, which is 39 feet 4 inches, with no limit on length, on a ceiling-only track and nothing in the floor. That figure is the reason the series shows up in congress centers and exhibition halls rather than only in offices and boardrooms: the panels are sized to the room, not the other way around, with the guide section chosen by element weight and the running gear built to take it.

PMI movable walls are independent sound-insulated elements, 27.6 to 47.2 in wide, offered in nine acoustic grades from A360 to A580 and approved in reaction-to-fire class 1; an EI 60 fire-resistant version is available on project, and the manufacturer names the naval sector among its fields of use, with marine approvals to be confirmed project by project.

The same catalog holds the lightweight PML, the glass PMIV and PMC, the thermally broken PMITT for outdoor use and the luminous SHINE. La Mercanti works the drawings in inches with your architect and confirms delivery dates in writing at order confirmation.

Technical information based on data declared by the manufacturer.

Model: PMI, Movable Sound-Insulated Walls; manufacturer Anaunia Srl, Santarcangelo di Romagna, Italy; Made in Italy.

Type: operable partition made of independent, sound-insulated elements operated singly, suspended from a ceiling-only guide with no floor track; free-standing, non-load-bearing wall.

Versions: PMI in nine acoustic grades A360 · A400 · A430 · A460 · A490 · A500 · A520 · A560 · A580 (the code states the Rw index); PMI EI 60 fire-resistant version, on customer project only; PME with semi-automatic operation; PMT Tailor Made custom version. Family: PML lightweight, PMIV and PMC glass, PMITT outdoor, PMP folding, SHINE luminous.

Acoustic insulation: Rw from 36 dB (A360) to 58.1 dB (A580), tested to DIN 52210 part 3 or UNI EN ISO 140-3 and UNI EN ISO 717-1, certificate issued by an ACCREDIA-accredited laboratory (Istituto Giordano); recyclable rock wool, glass wool or microcellular neoprene in the interspace according to grade.

Fire reaction and resistance: walls approved in reaction-to-fire class 1 by the Italian Ministry of the Interior (class 0 on request); panels in class B-s1,d0; EI 60 version to EN 1364-1 on customer project (model A REI 60-90: Rw 36 to 46 dB, standard element only).

Dimensions: element width 27.6 to 47.2 in (700 to 1200 mm), special sizes on request; wall height up to 39 ft 4 in (12 m), no limit on length; thickness 4.17 in (106 mm) with hidden profile and 4.33 in (110 mm) with visible profile, 5.83 in (148 mm) for model A580; standard element weight 7.4 to 17.2 lb/sq ft (36 to 84 kg/m²) by grade, telescopic element up to 19.5 lb/sq ft (95 kg/m²).

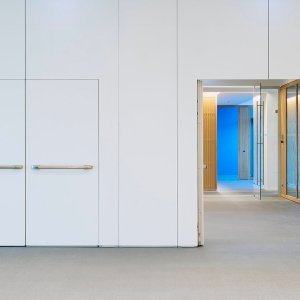

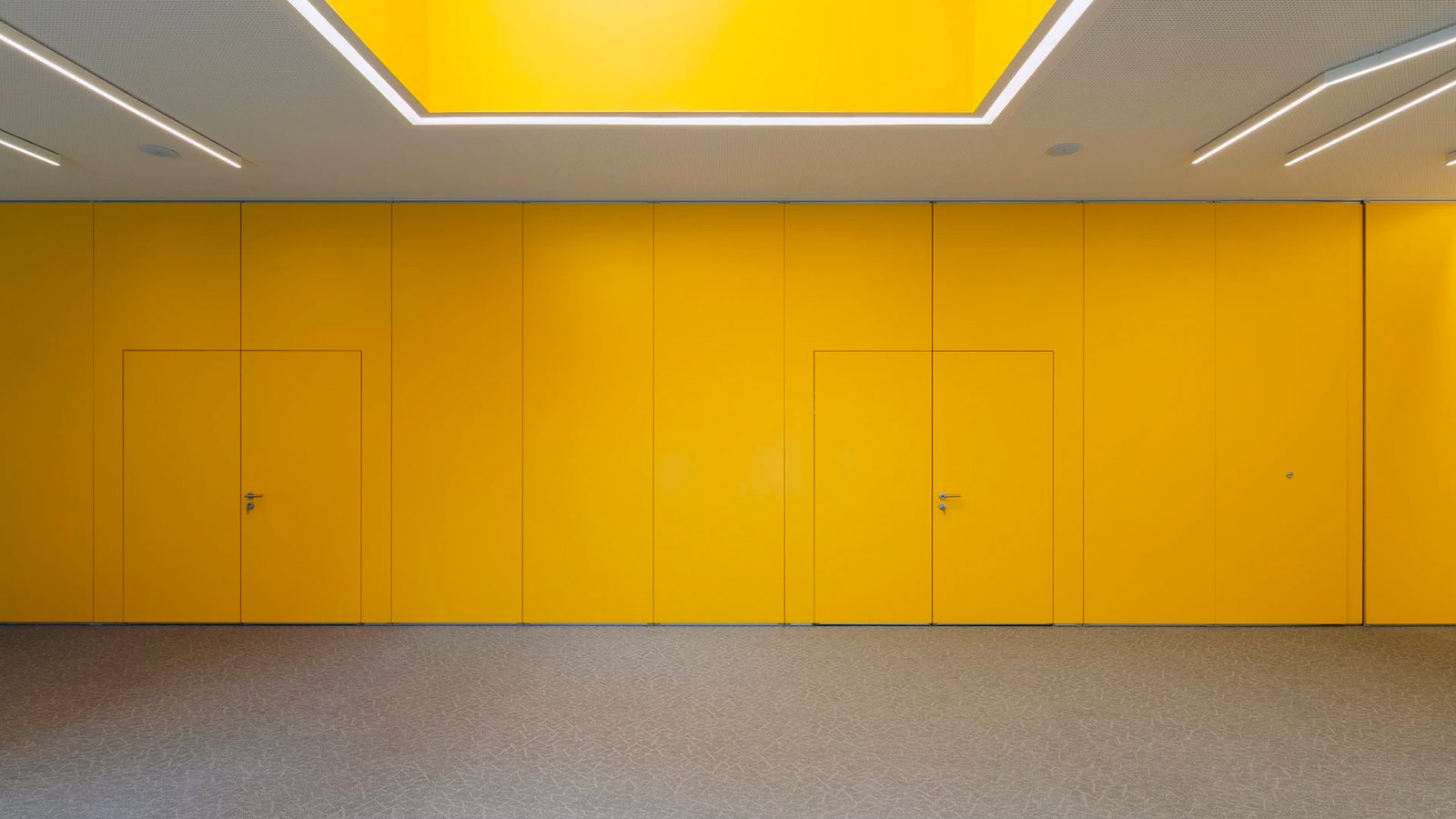

Elements: S standard · SF with window · SP with starters · SA corner · T-shaped and cross-shaped elements · PS door (clear opening 35.4 × 82.7 in / 900 × 2100 mm, minimum element height 98.4 in / 2500 mm) · PD double door (70.9 × 82.7 in / 1800 × 2100 mm, element 91.9 in / 2334 mm) · TC telescopic · MP start jamb and MA final jamb.

Structure: coated steel frame with vertical tongue-and-groove profiles in aluminum alloy 6060 (UNI EN 573, UNI EN 755-2), silver anodized to 15 microns, double rubber seals; ceiling guides in aluminum alloy EN-AW 6005 T6 anodized to 20 microns, section 4.25 × 2.99 in or 4.25 × 3.46 in (108 × 76 or 108 × 88 mm) by element weight, with winged supports for a drop ceiling or guide covering; guide lowering up to 15.7 in (40 cm) included, beyond on request; lattice beam for non-load-bearing structures and structural calculation report signed by a licensed engineer available.

Running gear: each element hung on 1 or 2 high-resistance steel bolts, 0.47 in (12 mm) diameter, in sliding trolleys of noiseless resin, 1.97 or 2.44 in (50 or 62 mm) diameter, vertical axis, two radial ball bearings and a device for deviations and intersections; storage layouts from type A to type H in the technical catalog.

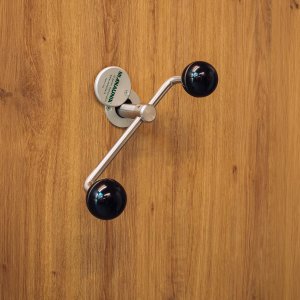

Closing mechanism: telescopic aluminum borders with rubber seals, 1 in (25 mm) expansion top and bottom, 337 lbf (1500 N) spring thrust per element; extractable handle inserted in the back of each panel, frontally on the telescopic element; telescopic element with side compensation of 3.9 in single track and 5.9 in double track (100 and 150 mm); height regulation of each element without removing the drop ceiling; on-site adjustment ± 0.4 in (± 10 mm) in height and ± 1.2 in (± 30 mm) in width.

Doors: three hidden hinges, same thickness as the wall, handle set into a cup-shaped recess, double guillotine seal, two locking bolts in floor sleeves; door automatically locked while the element is moved; options: glazed single door, fixed doors hinged to the room wall, red anti-panic push bar.

Panels and finishes: chipboard covering panels 0.63 in (16 mm), density 46.8 lb/cu ft (750 kg/m³), class E1, CE marked (EN 13986 P2), maximum width 47.2 in (120 cm), height-adjustable independently of the frame; finishes in CPL laminate 0.016 in (0.4 mm) in white, ivory or grey, HPL 0.035 in (0.9 mm) color or wood-effect series, melamine, prepared for painting, wood veneer, RAL, Pantone or clear lacquer at 25 gloss, leather, fabric, carpet; covering supplied by the client; different finishes on the two faces; aluminum colors on request.

Manufacturer certifications: Anaunia declares ISO 9001 and ISO 14001, tests in accredited laboratories recognized by the competent ministries, ecological and recyclable materials.

Intended use: interiors: congress centers, training rooms, offices, banks, theaters, exhibition halls, restaurants and hotels; the manufacturer also lists the naval sector among its fields of use (Tailor Made program): marine approvals are confirmed project by project on the manufacturer's documentation.

Service and maintenance: site survey and executive project included in the supply; transport, unloading and expert installation on request; manufacturer's program of periodic inspections and preventive service; PDF technical sheets and DWG drawings available for download.

La Mercanti USA Llc — your partner for Italian design and contract supply.
Los Angeles, CA, USA · +1 855 335 8079 · info@lamercanti.us
Supply, quotes, specifications and project support across the United States and North America.

Documents and Catalogs

Anaunia Office Partition Walls Catalogue Freespace Office Partition Walls Catalogue Anaunia Technical Datasheet PMI CAD & 3D Files

Let us know which finishes you'd like to explore

$ 180

Credited in full toward your purchase

FAQ

How big is the door you can build into a PMI wall?
A single PS door gives a clear opening of 35.4 by 82.7 inches on a 47.2-inch element; the PD double door opens 70.9 by 82.7 inches on a 91.9-inch element, and a red anti-panic push bar can be added.
What does the wall weigh, and can our ceiling take it?
A standard element weighs 7.4 to 17.2 pounds per square foot depending on the acoustic grade, up to 19.5 for the telescopic element; the guide section is chosen by weight and, where the structure is not load-bearing, Anaunia supplies a lattice beam with a signed structural report.
Where do the panels go when the room is open?

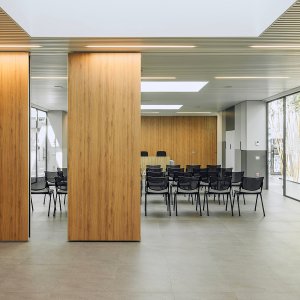

The technical catalog shows storage layouts from type A to type H: parallel, angled or in a side pocket, selected on the survey drawing so the stacked wall disappears from the room.
Which acoustic grades exist and who certified them?
Nine grades from A360 to A580, whose codes state the Rw index from 36 to 58 dB, all tested in an ACCREDIA-accredited laboratory, the Istituto Giordano.
When do we get a delivery date?
Delivery dates are confirmed in writing at order confirmation, after the site survey that Anaunia includes with every PMI supply.

How to receive a PMI wall in a building that is already open

Five steps to bring a PMI operable partition by Anaunia into a hotel, campus or office that keeps working during the installation.

Book the dock and the freight elevator
PMI elements by Anaunia arrive as separate panels up to 47.2 inches wide; agree the unloading slot and the elevator size with the building before the truck is dispatched.
Clear the path to the room
Walk the route from dock to hall with the PMI drawings in hand: door widths, corners and floor protection are settled before delivery day.
Isolate the room, not the floor
The PMI guide is fixed only to the ceiling, so the rest of the floor stays in use; tape off the strip under the track and keep the adjoining rooms open.
Stage the panels in order
Unload the PMI elements in installation sequence, start jamb first and telescopic element last, so nothing is moved twice inside an occupied building.
Hand over with the paperwork
La Mercanti closes the delivery with the DWG set, the certificates and the written dates agreed at order confirmation, so facilities has the file the day the wall is first closed.
