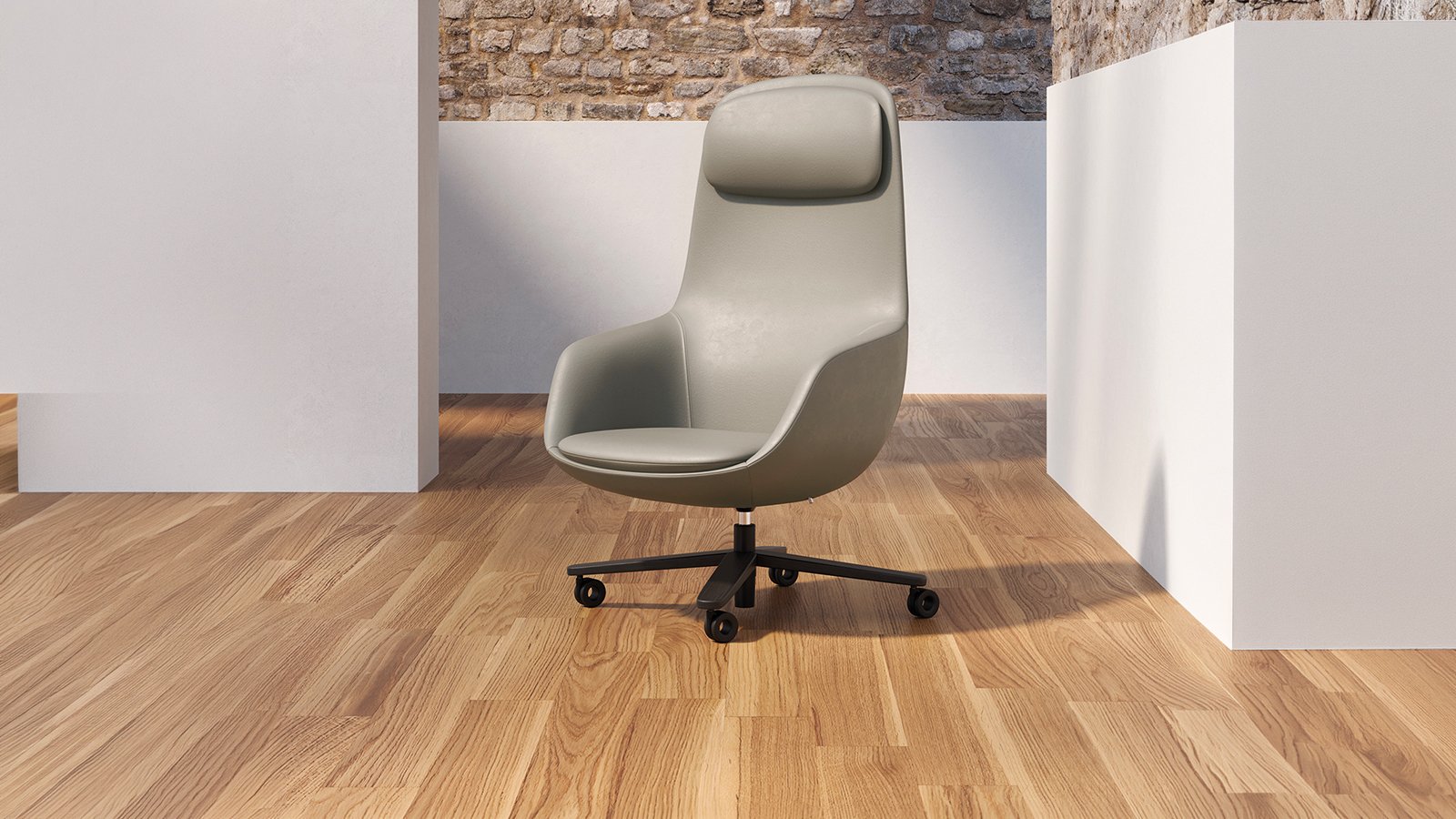

Executive office chairs Radar by Frezza in a private office

One seat height, four backrests: how the Radar family by Frezza is actually sized

Frezza

Claesson Koivisto Rune

Executive chair
Radar exe An icon of Italian design Executive chair
$ 12,690

What did you have in mind?

Trade terms for professionals and design studios

Read a seating spec sheet closely and you usually find four products pretending to be one family. The Radar executive armchair is the opposite. All four versions put the seat at the same 16.9" off the floor and keep the same 27.7" width; the only figure that moves is the backrest, which climbs 26", 36.6", 48" and 48.2". Frezza calls the tallest one an alcove, and the word is fair: at four feet the back stops being furniture and starts being a partition you can sit inside. Specifying the family therefore means choosing how much privacy a spot needs, not how much comfort it deserves – those two decisions have been separated on purpose.

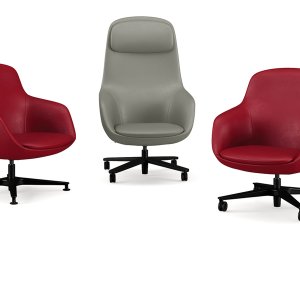

The same discipline runs through the rest. Radar Executive is the executive chair, 34.6" wide, with a gas lift that moves the seat from 16.5" to 20.1" and a headrest that is fixed or adjustable through 2.8". The Meeting version drops the backrest to 35.8-39.4" overall; the Visitor version swaps castors for glides and swivels 180° each way. The two-seater sofa repeats the trick with backs at 26", 36.6" and 48.4", adds a USB socket and a lumbar cushion, and six pouf modules plus two lounge tables close the collection. On a US submittal the useful figure is the backrest height: fix that per space and the finish schedule writes itself.

Technical information based on data declared by the manufacturer.

Collection: Radar, designed by Claesson Koivisto Rune
Manufacturer: Frezza S.r.l., Italy – design, manufacture and installation of office furniture

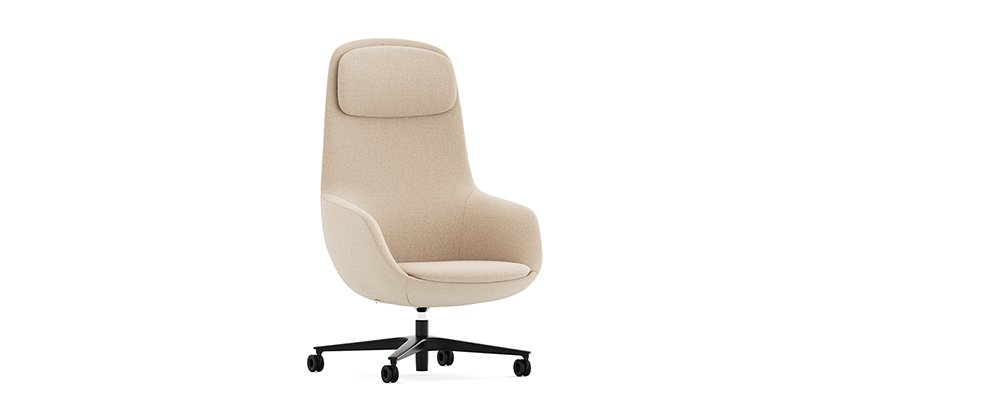

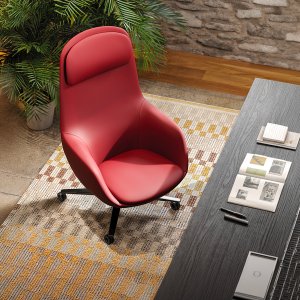

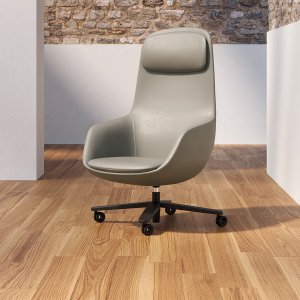

Radar Executive: executive office chairs – high backrest with headrest; rigid polyurethane shell, cold-foamed flexible polyurethane padding in varying densities; fabric, faux leather or leather

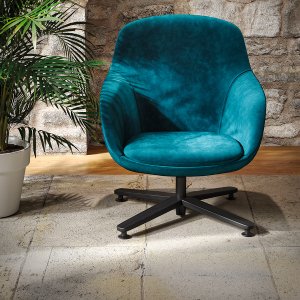

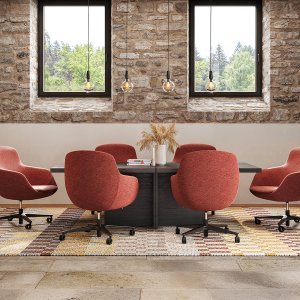

Radar Executive Meeting: conference chairs – low backrest, gas lift, 4-star base on castors

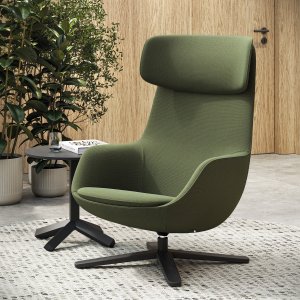

Radar Executive Visitor: guest chairs – low backrest, auto-return mechanism with 180° swivel each way, 4-star base on glides

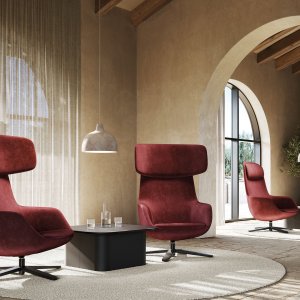

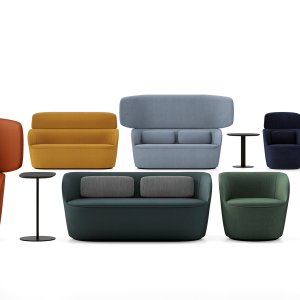

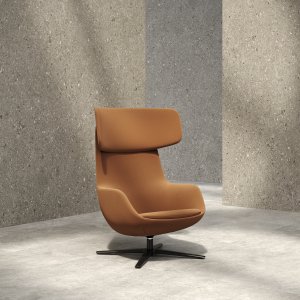

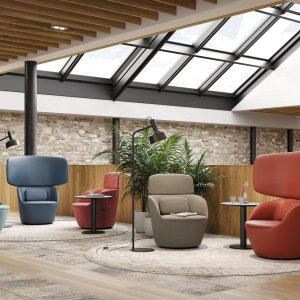

Radar Lounge: lounge armchair – four versions defined by the volume of backrest and headrest; 4-star base on glides

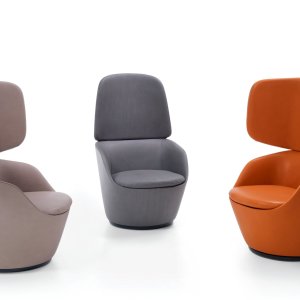

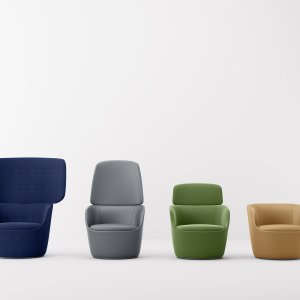

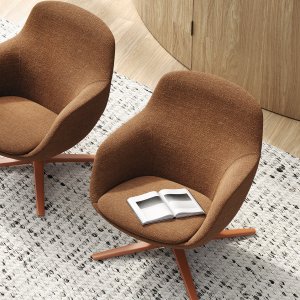

Radar armchair: four versions – Small, Medium, Large and Extra Large – set apart by the growing backrest; fixed or swivel base

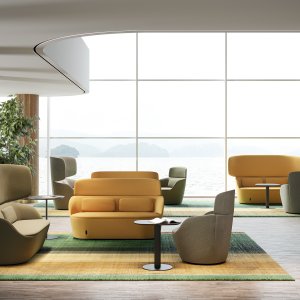

Radar sofa: sofas and lounge seating – two-seater with three backrest heights; 5V A+C USB socket in zamak, centrally fitted

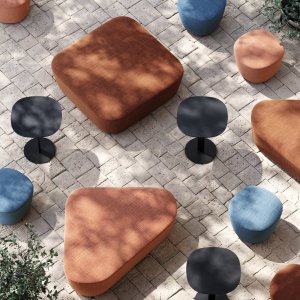

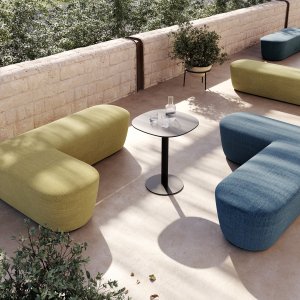

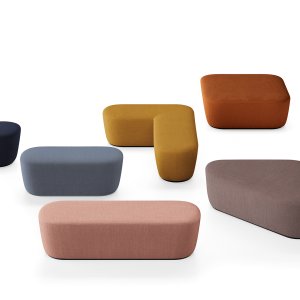

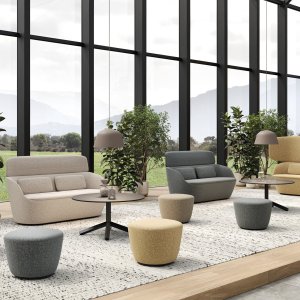

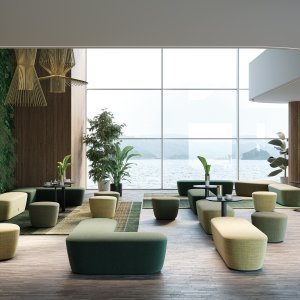

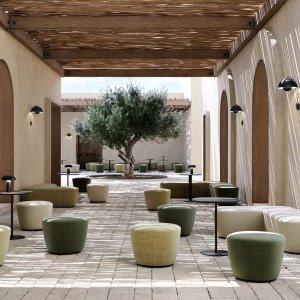

Radar pouf: six modules – 1, 2 and 3-seat linear units, right and left L-shapes, triangular and square – seating 2 to 4 people; optional USB socket, not available on the 1-seat unit
Radar lounge tables: Laptop at 21.7" and Break Out at 25.6"
Headrest: rigid polyurethane frame with cold-foamed padding; fixed high, fixed low, or height-adjustable through 2.8"
Mechanisms: free tilt (7° back, 4° forward); lockable tilt with a lever on the left (7° back); auto-return tilt with 180° swivel each way. Every mechanism is concealed inside the shell
Seat height adjustment: gas lift through 3.5", lever on the right
Bases: 4-star black powder-coated aluminium, or a steel core wrapped in a protective solid ash profile stained black; castors Ø 2.6", twin-wheel, rubber-tyred and self-braking, or glides
Executive dimensions: width 34.6", depth 29.1-29.5"; overall height 48.4-52" with the high backrest and 35.8-39.4" with the low one; seat height 16.5-20.1"
Radar armchair dimensions: seat height 16.9" across all four versions; width 27.7", rising to 43.1" on the Extra Large; depth 30.8-31.7"; overall height 26", 36.6", 48" and 48.2"

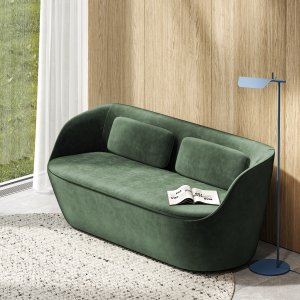

Sofa dimensions: two-seater, width 59", seat height 17.3", backrests at 26", 36.6" and 48.4"
Pouf dimensions: height 16.9" on every module; depth 21.3"; width 47.2" for the 2-seat unit and 65" for the 3-seat unit; L module 65×47.2"; square module 47.2×47.2"
Lounge tables – top: matt lacquered MDF in white RAL 9016 or black RAL 9011; square 22×22" or rectangular 22.4×14.2", with corners radiused at 7.9"; fixed with four screws
Lounge tables – frame: embossed painted metal in white RAL 9010 or black RAL 9005; elliptical stem 3×1"; circular base Ø 14.2" with a single felt pad Ø 13.8"
Seat cushions: high-density foam, removable covers on armchair and sofa
Removable lumbar cushion: 15.7×3.3×9.8" for the armchair, 21.7×3.3×9.8" for the sofa
Upholstery: fabric, faux leather and leather – categories F, G, Q, H, D, X, P (leather) and PX (corrected grain leather), including Step, Chili, Jet, Rivet, Era, Remix 3, Steelcut Trio 3, Ecriture, Ombra, Elmosoft and Montana
Frezza S.r.l. certification: UNI EN ISO 9001:2015, UNI EN ISO 14001:2015 and UNI ISO 45001:2018, IAF activity 23; compliance with FSC-STD-40-004, with FSC® certified products available on request
Made in: Italy

La Mercanti USA Llc — your partner for Italian design and contract supply.
Los Angeles, CA, USA · +1 855 335 8079 · info@lamercanti.us
Supply, quotes, specifications and project support across the United States and North America.

Documents and Catalogs

Frezza Seating Catalogue

Let us know which finishes you'd like to explore

$ 180

Credited in full toward your purchase

FAQ

Do the four armchair versions share a seat height?
Yes, all four sit at 16.9" and measure 27.7" wide, except the Extra Large at 43.1". Only the backrest changes, from 26" to 48.2".
What does the Extra Large backrest do for an open floor?
Frezza describes it as an alcove. At roughly four feet it screens the head and shoulders, which is why it works as a quiet spot without adding a partition.
How much travel does the gas lift give?
3.5", moving the chair from 16.5" to 20.1" off the floor, operated by the lever on the right.
Is a lumbar cushion available?
Yes, removable: 15.7×3.3×9.8" for the armchair and 21.7×3.3×9.8" for the sofa, upholstered in the same range as the rest.
What does the sofa offer?
Two places, 59" wide, with backs at 26", 36.6" and 48.4" and a USB socket fitted at the centre.

How to plan a Radar layout by Frezza for a US floor

Five steps from the floor plan to the finish, using the sizes and options Frezza publishes for Radar.

Map the seating types first
Private office, conference room, reception and breakout each take a different member of the family, so the count comes before the finish.
Set the movement
Three behaviours are offered: rocking freely, rocking and locking, or rocking with a swivel that returns on its own. Pick one per room, not one per building.
Choose base and floor contact
Two bases: lacquered aluminium, or a steel core faced in blackened solid ash. Braked twin wheels suit hard floors; glides suit a chair that should never travel.
Add power where people linger
The sofa takes a USB socket in the centre; pouf modules take one too, apart from the single seat.
Close with upholstery and cushions
Eight covering categories run from woven cloth to corrected grain leather, and the seat covers lift off. A lumbar cushion can be added in either size.
