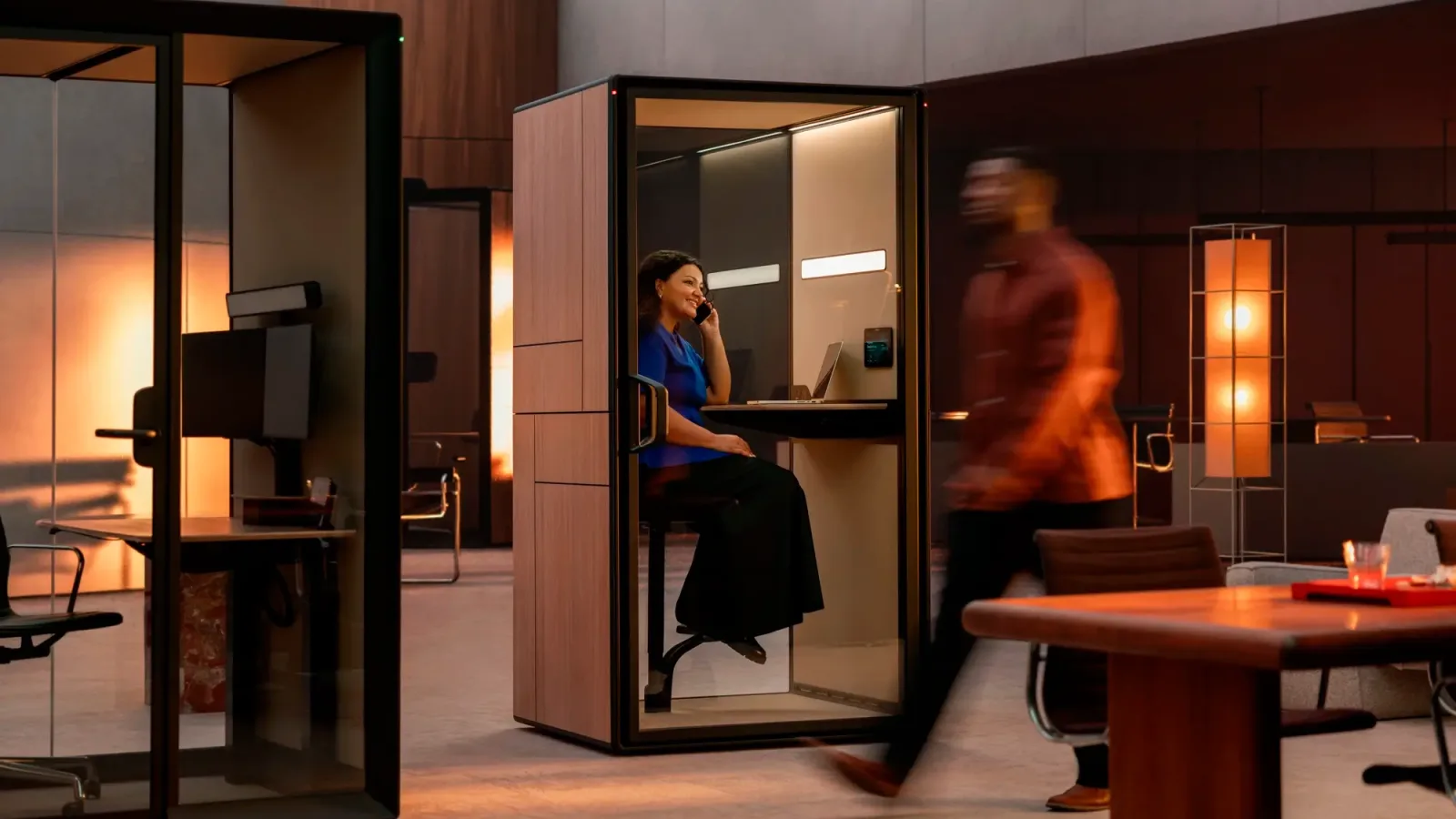

Framery Gradus Focus booth in a US open plan office

A booth built for the call you take standing: Framery Gradus Focus

Framery
Complete office pod
Focus Most chosen configuration Complete office pod
$ 29,646

From our design team in Italy — within 24 hours

Bespoke: size, colour, finish

The table in Gradus Focus sits 41.3 inches off the floor. That is standing height, and it is the whole idea: this is the booth for the call you take between two other things, not the room you settle into for an afternoon. A height-adjustable stool is there when you want one, 23.2 to 33.5 inches with a footrest and a 300-pound rating, so the same booth holds a five-minute call on your feet and a longer one off them.

Framery lights this one harder than anything else in the Gradus line: up to 1,160 lux on the face in video mode, against 570 lux on the table for focus work — roughly double what the two larger pods put on a face, because in a booth this size the face is the entire frame. Speech drops 30 dB in Class A under ISO 23351-1. Airflow tops out at 61 CFM, reads temperature and humidity, and the pod draws 20 watts in its default setting. The touchscreen lives on the wall rather than the table, which leaves the whole 30.6 by 15.5 inch top to a laptop, and a coat hook on the side of it takes the jacket.

One number belongs on the drawing before any of the others: the threshold is 3.3 inches. Focus is a booth you step into, so if step-free entry is a requirement on your floor, Gradus Work is the one in the family with a half-inch threshold and an entry Framery describes as meeting ADA guidelines. La Mercanti will say that before the order rather than after, and will place the two where each belongs: the standing booth among the desks it serves, the seated one where someone needs to stay a while.

Technical information based on data declared by the manufacturer.

Collection: Framery Gradus Focus
Manufacturer: Framery (Finland); Gradus line assembled in Michigan, USA
Type: smart soundproof focus and call booth for one person, standing or with the optional stool
Soundproofing: 30 dB speech level reduction, Class A (ISO 23351-1); can be placed next to workspaces
Ventilation: adaptive, up to 61 CFM (45 typical in use, 40 standby); reads surrounding temperature and humidity; higher-speed refresh after use; manual override
Lighting: two 4000 K LED sources; up to 570 lux on the table top and 1,160 lux on the face in video mode; standard and video presets, manual adjustment
Table: 30.6 × 15.5 in, fixed height 41.3 in, 110 lb load; birch plywood top in white, black anti-fingerprint, oak or walnut, black thermoformed felt underside
Stool: optional; seat 15 × 15 in, height 23.2 to 33.5 in, 300 lb load, with footrest; steel, aluminum and plastic; Gabriel Select cover, 85% New Zealand wool and 15% polyamide
Controls: 8-inch touchscreen on the wall; mmWave radar presence detection; exterior corner occupancy lights, green, yellow and red
Connectivity: built-in 4G with SIM and Wi-Fi 802.11 a/b/g/n/ac; over-the-air updates; bookable as a room, automated walk-in reservations, anonymous occupancy data in Framery Connect
Power: 20 W default, 50 W maximum, 10 W standby; 120 VAC 60 Hz, NEMA 5-15P plug; 1 power outlet at table level, optional USB-C PD 65 W and LAN port; 23 ft cord
Dimensions: 86.9 × 43.7 × 39.4 in, or 87.1 in high with ventilation cover, casters and seismic kit; doorway 80.5 × 37.2 in, 180° swing, right handed as standard and installable left; threshold 3.3 in; weight 595 lb
Materials: powder-coated matte steel exterior panels, matte black aluminum frames, 0.16 + 0.16 in sound control laminated glass, light steel and PET acoustic chassis, recycled polyester interior panels, antistatic low loop pile carpet
Compliance: UL 962; ICC-ES evaluation report ESR4445 against acceptance criteria 519; designed to IBC, IFC and IMC; seismic tested to ASCE 7-16 with PE-stampable restraints; compatible with fire sprinklers and notification devices; all electronics in the roof structure
Environment: UL GREENGUARD Gold; third-party verified EPD, LCA, HPD and Declare label published for the Gradus line; documentation contributing to LEED, BREEAM, SKA and WELL submissions; fully modular, every component replaceable; EcoVadis Gold
Logistics: shipping crate 89.8 × 18.9 × 52 in, 838 lb, stackable two high; optional casters for repositioning without disassembly, leveling guides lifted to move and lowered to place
Accessories: privacy film for 360-degree visual privacy, wooden or fabric wall panels, exterior tablet mount and Framery Room Display kit

La Mercanti USA Llc — your partner for Italian design and contract supply.
Los Angeles, CA, USA · +1 855 335 8079 · info@lamercanti.us
Supply, quotes, specifications and project support across the United States and North America.

Documents and Catalogs

Gradus Focus Catalogue Gradus Focus CAD & 3D Files

FAQ

Is this the right booth if someone cannot manage a step?
No, and it is worth saying plainly: the threshold here is 3.3 inches, so Focus is a booth you step into. Gradus Work is the one in the same family with a half-inch threshold and an entry that Framery describes as allowing easy access for wheelchair users in accordance with ADA guidelines. Same line, same finishes, different answer.
Can it be ordered without the stool?
Yes. Framery offers it as a standing booth or with the height-adjustable stool, which runs 23.2 to 33.5 inches, carries 300 pounds and has a footrest. The table itself is fixed at 41.3 inches either way, so the posture decision is made at order and not afterwards.
Why is the video light so much brighter here?
Because the frame is smaller. Video mode puts up to 1,160 lux on the face against 570 lux on the table for focus work, from two 4000 K sources with manual override. In a one-person booth the face fills the shot, and lighting it well is the difference between a call that reads as considered and one that reads as improvised.
Where are the controls, and how much table is left?
The 8-inch touchscreen is on the wall rather than the table, which leaves the full 30.6 by 15.5 inch top for a laptop and notes, rated to 110 pounds. One power outlet sits at table level, with USB-C PD at 65 W and a LAN port available as options, and there is a coat hook on the side of the table.
How does it arrive, and can it be moved later?
In a single crate of 89.8 by 18.9 by 52 inches weighing 838 pounds, stackable two high; the pod itself is 595 pounds, the lightest of the Gradus line. Optional casters let it be repositioned without disassembly once the leveling guides are lifted. Delivery times are confirmed in writing at order confirmation.

What you can change later, and what you cannot

Five specifications for Gradus Focus, sorted by how permanent each one turns out to be.

Permanent: the height of the table
41.3 inches, fixed. The stool adjusts and the table does not, so the question to settle first is whether this booth is for standing calls or for seated stretches of work.
Permanent: the step at the door
3.3 inches of threshold. Decide now whether anyone who will use this part of the floor needs step-free entry, because the answer points to a different pod in the same family rather than to an accessory.
Changeable: the way it looks
Wall panels are interchangeable in wood, fabric or your own material, and privacy film can be added to the glass later by installers. Finish is the one decision here that is not a commitment.
Changeable: where it stands
Optional casters move the booth without disassembly: lift the leveling guides, roll it, lower them again. Plan the first position properly, but know the floor can be re-thought without a crate.
Set once, felt every day: the light
570 lux on the table for focus, 1,160 on the face for video. Choose which mode the booth opens in, because that is the setting nobody adjusts twice.
