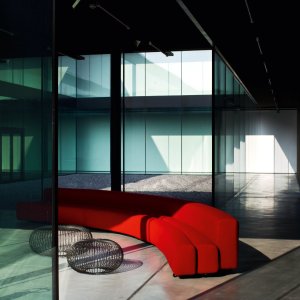

Osaka sofa and backless bench by LaCividina in one run across a lobby

Every Osaka length is sold twice: with a back as a sofa, without one as a bench

laCividina

Pierre Paulin

Reception sofa
Osaka An icon of Italian design Reception sofa
$ 29,646

What did you have in mind?

Trade terms for professionals and design studios

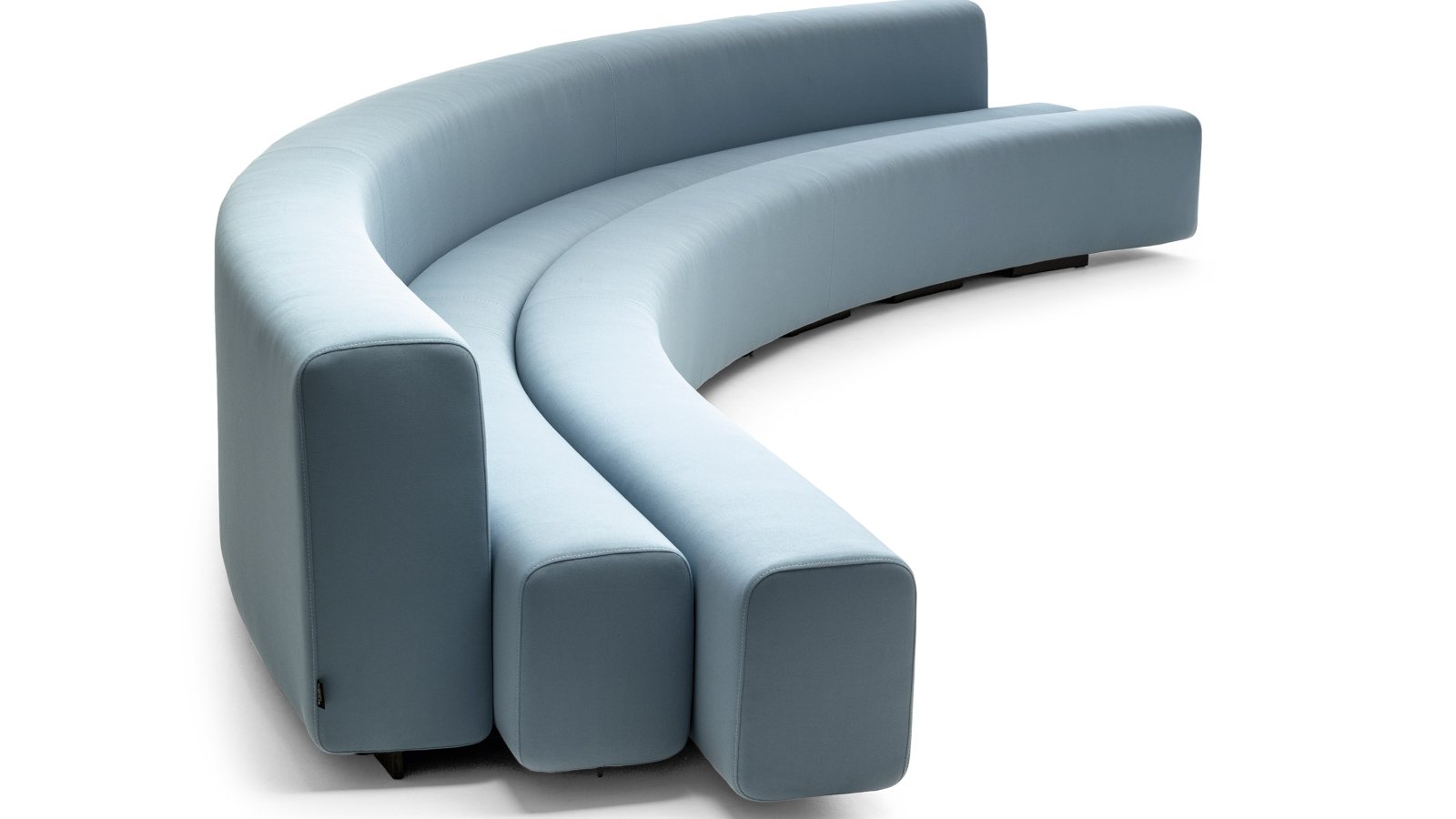

The price list reads like a mirror. Codes 8801 to 8810 are the Osaka sofa in ten lengths, 70⅞″ to 248″; codes 8811 to 8820 are the same ten lengths as a bench with no back. Seat height stays at 16½″ on both, so a designer can run a backed section along a wall and switch to a backless one in the middle of the floor, where people sit from either side, without a step in the line.

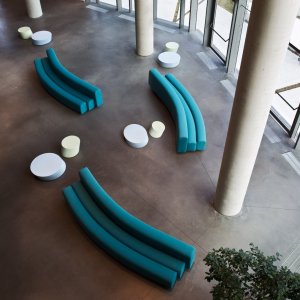

That pairing is what makes Osaka useful as guest seating in a lobby. A visitor waiting for a meeting wants the back; a group crossing the floor between two doors wants a low island they can perch on for a minute. LaCividina builds both around one reinforced steel frame made for public areas, with flame-retardant foam laid in different densities.

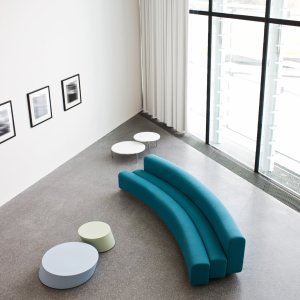

The family also bends: straight and curved modules combine into arcs, rings and S-shapes, and an Outdoor version, its steel cataphoresis-coated, takes the same lengths onto a terrace. For a breakout corner the sofa codes double as lounge seating. La Mercanti writes the sofa and bench codes on two separate lines of the order, checks them against the plan, and ships the composition to the building as one delivery.

Technical information based on data declared by the manufacturer.
  • Collection: Osaka, contract seating system — sofa, bench and system
  • Manufacturer: LaCividina, Martignacco (Udine), Italy
  • Design: Pierre Paulin, 1967 — reissued by LaCividina in 2013
  • Declared origin: developed for Expo 1970 in Osaka, Japan, the city it is named after
  • Principle: straight and curved modules joined end to end
  • Sofa (codes 8801-8810): lengths 70⅞″ · 90½″ · 110¼″ · 129⅞″ · 149⅝″ · 169¼″ · 189″ · 208⅝″ · 228⅜″ · 248″
  • Sofa section: depth 26⅜″, height 30¾″, seat height 16½″

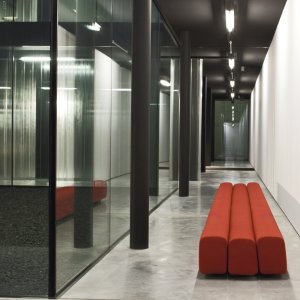

  • Bench (codes 8811-8820): same ten lengths, no back; depth 30¾″, height 16½″

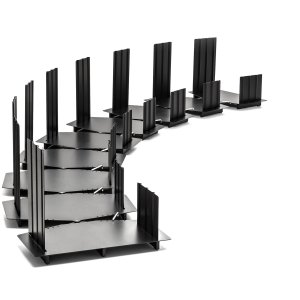

  • Minimum radius: back 101⅝″, front 70⅞″; metal plates 96⅞″ and 67⅜″
  • Frame: steel, reinforced for public area use; base painted black RAL 9005

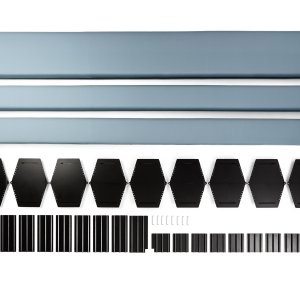

  • Base parts: side base, central base, side and central back supports, side and central seat supports, base connection clip
  • Padding: flame-retardant, non-deforming polyurethane foam of different densities; polyester fiber
  • Stitching: reinforced with carbon fiber support
  • Cushions: back cushion, front seat cushion, center seat cushion, inserted in sequence
  • Upholstery: removable, in selected stretch fabrics; recommended Stretchy, Trio, Bit, Mosaic 2, Uniform Mélange, Arda, Regos, Triangle, Gentle 2
  • Net weights, sofa: 134 lb for the 70⅞″ to 505 lb for the 248″; bench 115 lb to 461 lb
  • Packed volumes: sofa 38.8 to 125.4 cu ft; bench 35.3 to 116.5 cu ft
  • Osaka Outdoor: same lengths; cataphoresis-painted steel, protective interliner, outdoor fabric; fixed radius 113⅜″ back and 82⅝″ front; straight, closed curved, open curved and left or right S pieces; protective cover on request
  • Warranty: 2 years on frames and components, 2 years on covers, declared by LaCividina
  • Declared projects: Louis Vuitton Cruise 2015 in Monte Carlo, Het Nieuwe Instituut in Rotterdam, 10 Corso Como in Shanghai, Chanel Ginza Building in Tokyo
  • Project files: data sheet, 2D and 3D CAD, BIM/Revit, online planner
La Mercanti USA Llc — your partner for Italian design and contract supply.
Los Angeles, CA, USA · +1 855 335 8079 · info@lamercanti.us
Supply, quotes, specifications and project support across the United States and North America.

Let us know which finishes you'd like to explore

$ 180

Credited in full toward your purchase

FAQ

What is the tightest curve an Osaka piece can make?

LaCividina publishes a minimum back radius of 101⅝″ and a minimum front radius of 70⅞″; the steel plates under the cushions bottom out at 96⅞″ and 67⅜″. Within those figures the bend is drawn to the room rather than picked from two fixed shapes, which is why the plan is checked before the order.

Which fabrics does LaCividina recommend for Osaka?

Nine references, grouped by category: Stretchy (B); Trio and Bit (Extra); Mosaic 2 and Uniform Mélange (Maxi); Arda and Regos (Top); Triangle and Gentle 2 (Special). They are listed as selected stretch fabrics, chosen because the cover has to follow a curve, and the manufacturer declares every one of them flame retardant.

Can two colors be combined on one Osaka run?

Yes, and LaCividina has done it at scale: the sofas built for the Louis Vuitton Cruise 2015 show in Monte Carlo were two-tone, beige and white. A two-color scheme lets a lobby mark the sofa sections and the low island sections in one continuous line.

Does Osaka come with planning files?

The product page offers 2D and 3D CAD, BIM/Revit models and families, the image library and an online planner for laying out the curve. La Mercanti forwards the files with the quotation so the composition can be placed in the FF&E model before anything is confirmed.

How is the frame of an Osaka sofa built for public use?

LaCividina declares a frame reinforced for public area use, with flame-retardant polyurethane foam laid in different densities and seams reinforced with carbon fiber. The base is painted steel, and every code is classified as mostly metal by weight.

How to plan the delivery of an Osaka composition

Osaka elements are heavy and long. Five checks before the truck is booked, so the pieces reach the lobby floor without a surprise.

Start from the 248″ element

Find the longest Osaka piece on the order. The 248″ sofa weighs 505 lb net and 591 lb packed, in a crate of 125 cu ft; that single item sets the vehicle, the crew and the route.

Add up the packed volumes

Every Osaka code carries a packed volume on the LaCividina list, from 38.8 cu ft upward. Sum them to size the truck and to know how many trips the goods lift will make.

Check the lift and the turn

Compare the longest crate against the lift car and the tightest turn between the dock and the lobby. An Osaka element travels as a steel kit plus cushions, which helps, but the crate is still long.

Book the floor, not just the slot

Osaka is assembled where it stands. Agree a window when the reception floor is clear, and protect the finished surface along the path from the entrance.

Confirm the weights on the order

La Mercanti writes the net and gross weight of each Osaka element on the transport order and shares it with the building manager before the delivery date is fixed.
